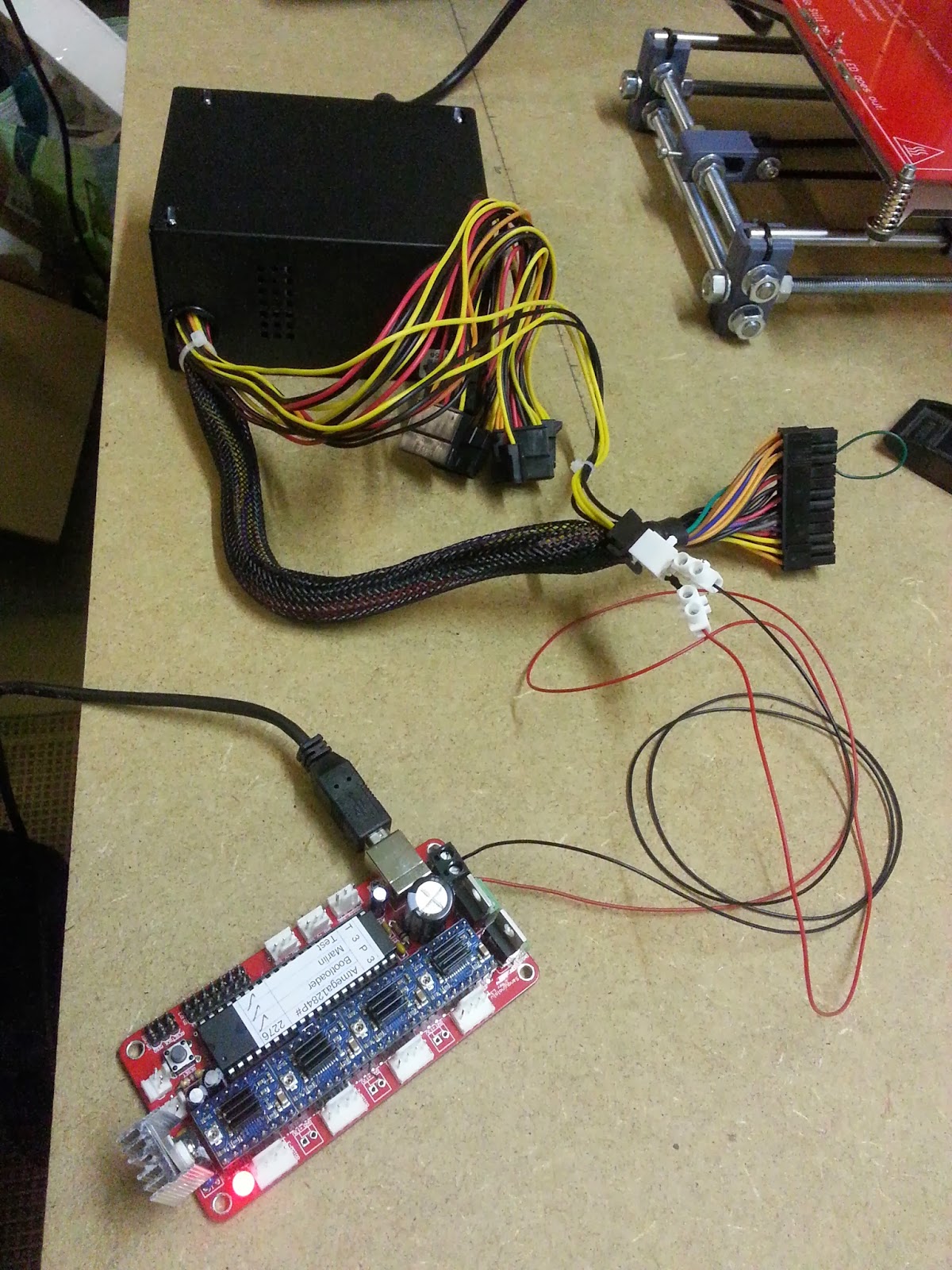

The Sanguinololu board is powered by a 400 Watt ATX power supply.
You really need to short circuit ATX pin 16(green) to ground(black) to enable power(!PWR_ENABLE) on the 4 pin connector.
The USB Connection goes to to a Virtual Serial COM port on the PC.
Started up Pronterface and successfully connected to the "printer" (still need to do all the wiring) using COM port 3 with a 250000 baudrate
The smoke test didn't cause actual smoke so i'm happy!
